Model Whirlpool 8624^1A REFRIGERATOR – Common Parts & Diagrams

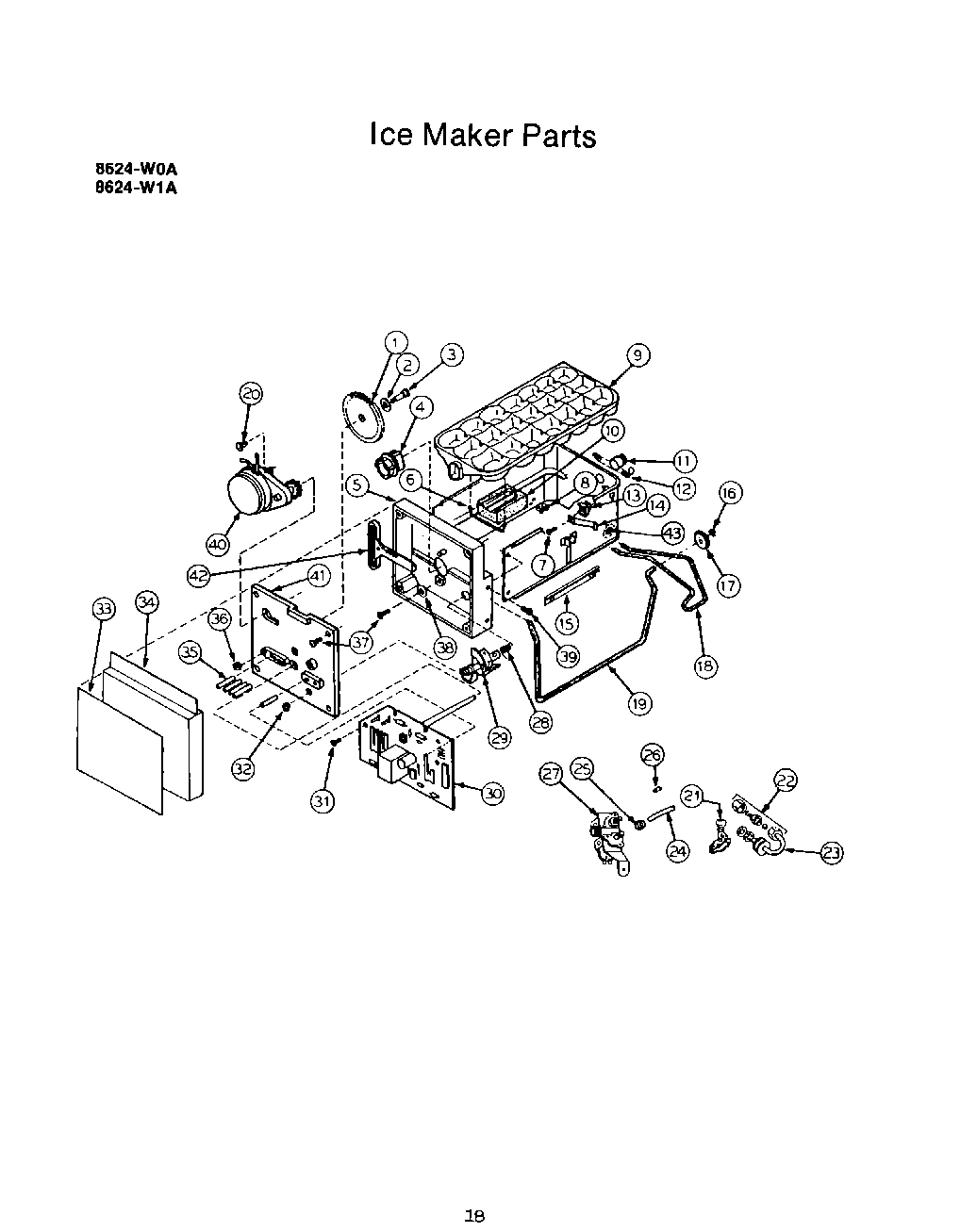

09 - ICE MAKER

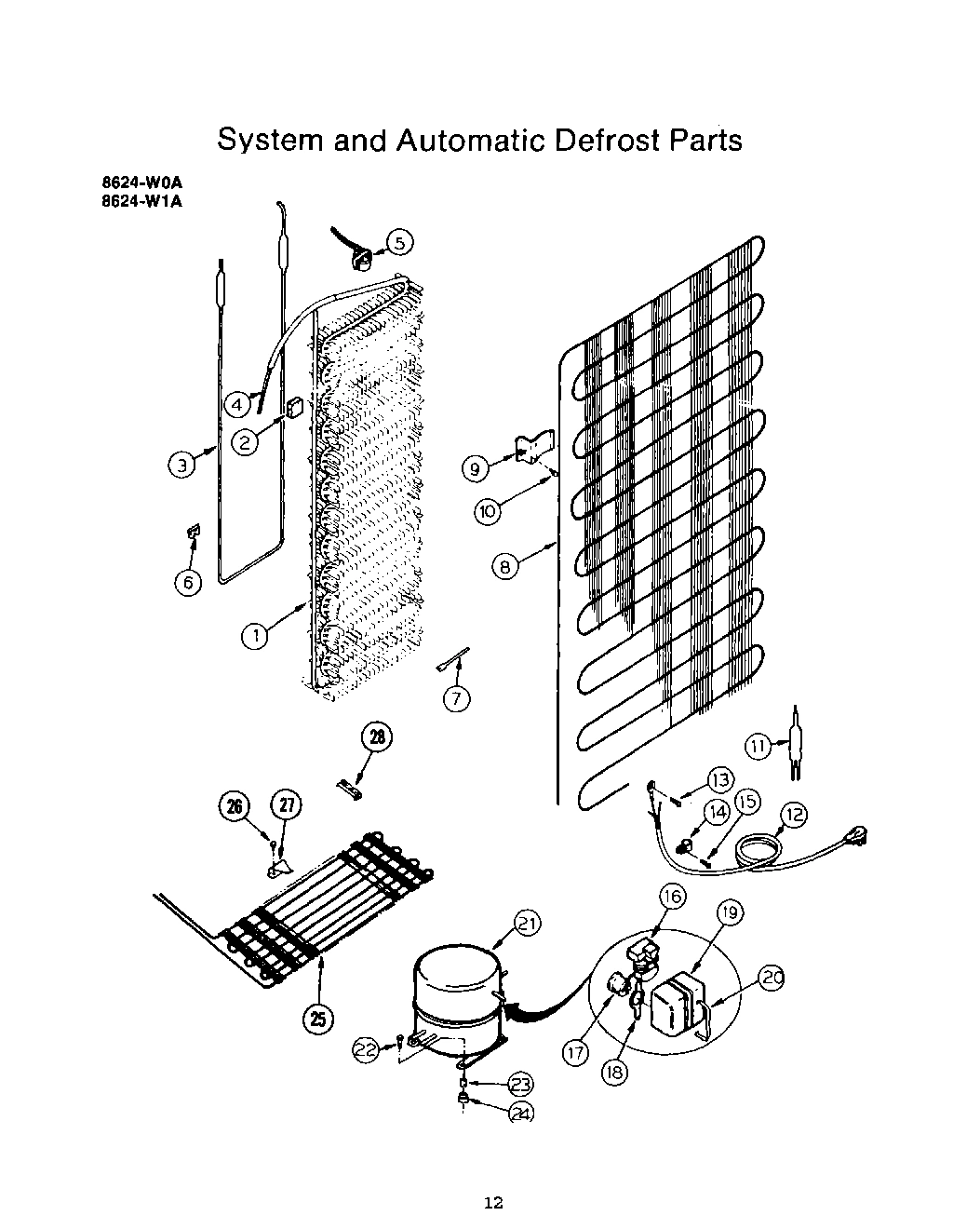

06 - SYSTEM AND AUTOMATIC DEFROST

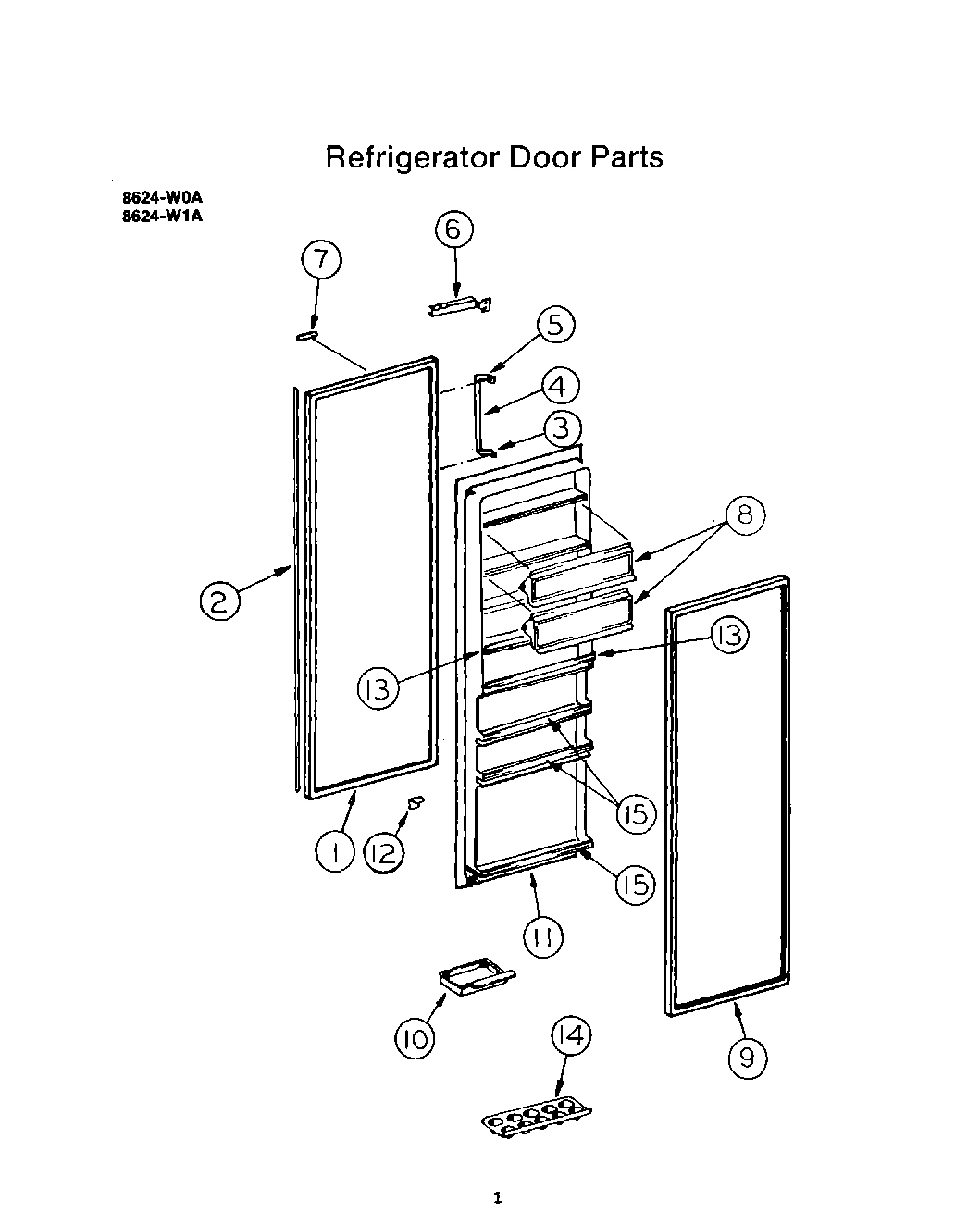

02 - REFRIGERATOR DOOR

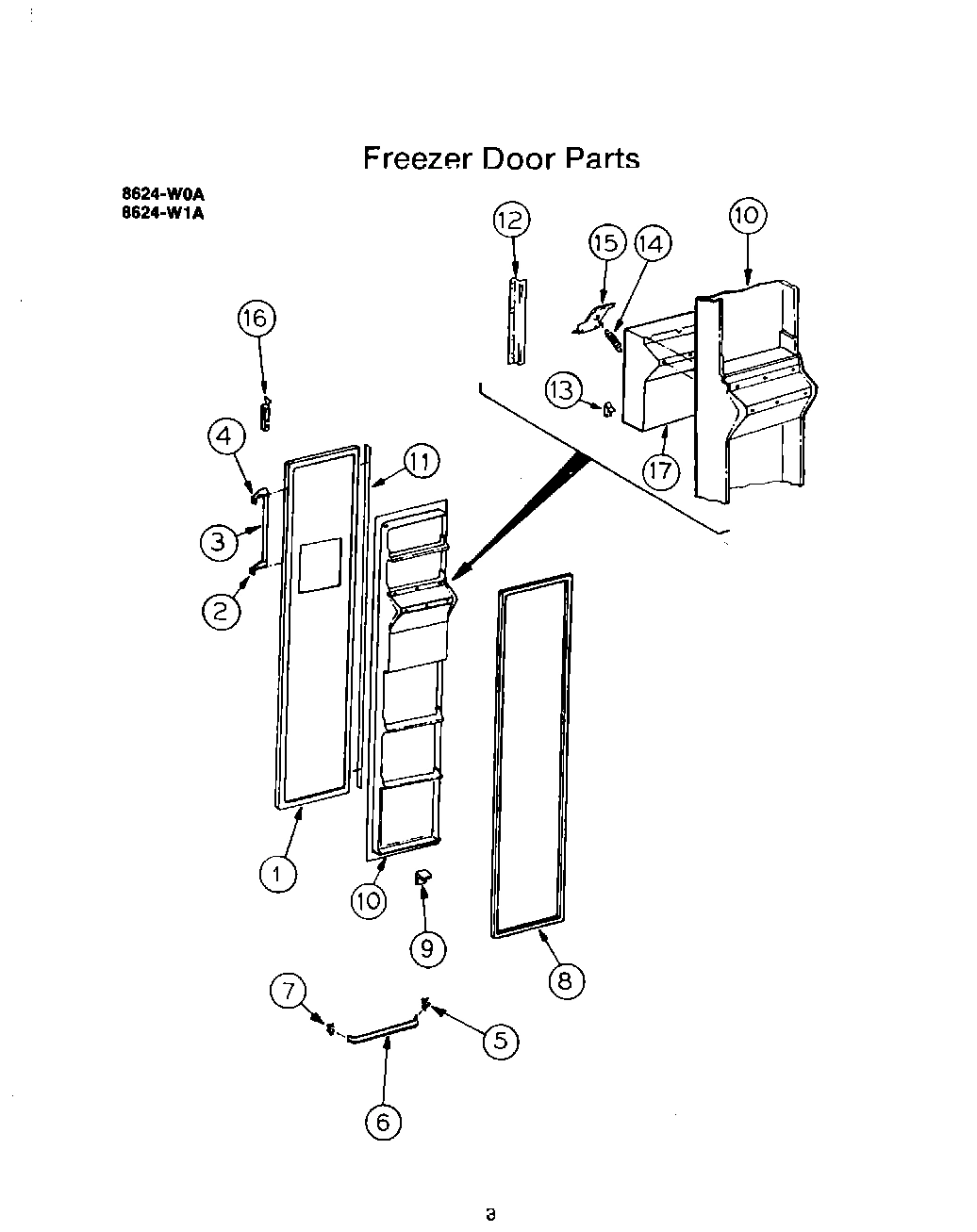

03 - FREEZER DOOR

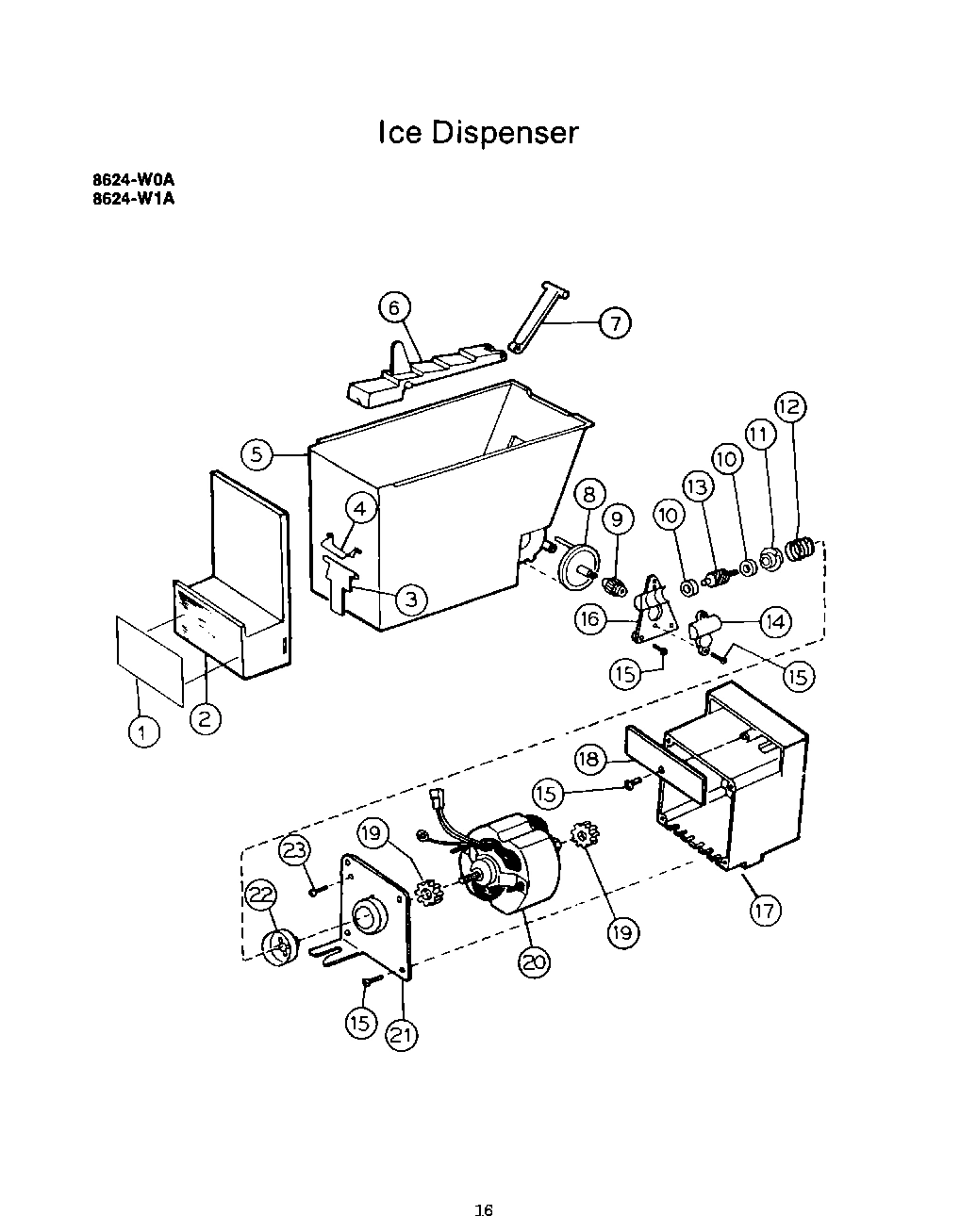

08 - ICE DISPENSER

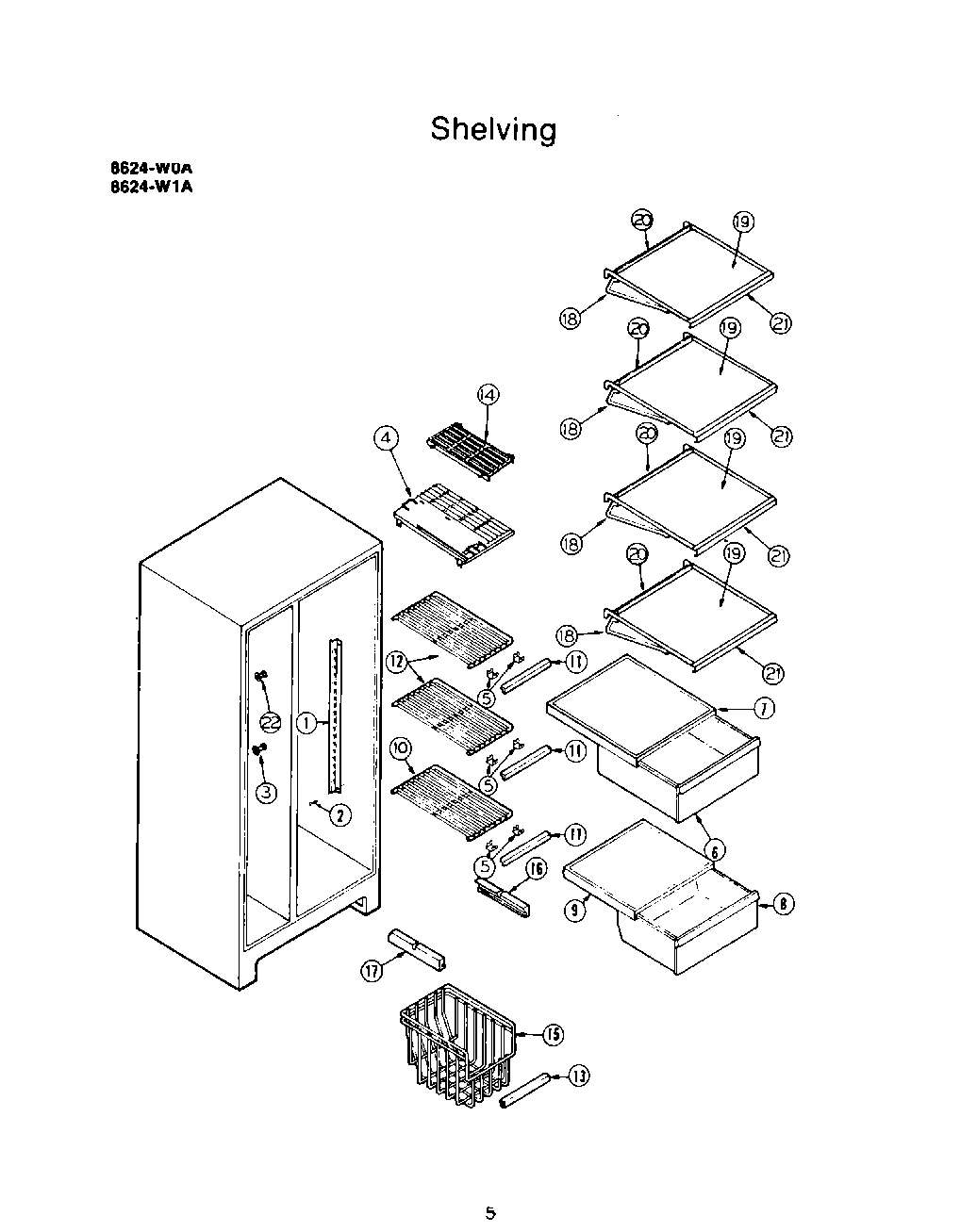

04 - SHELVING

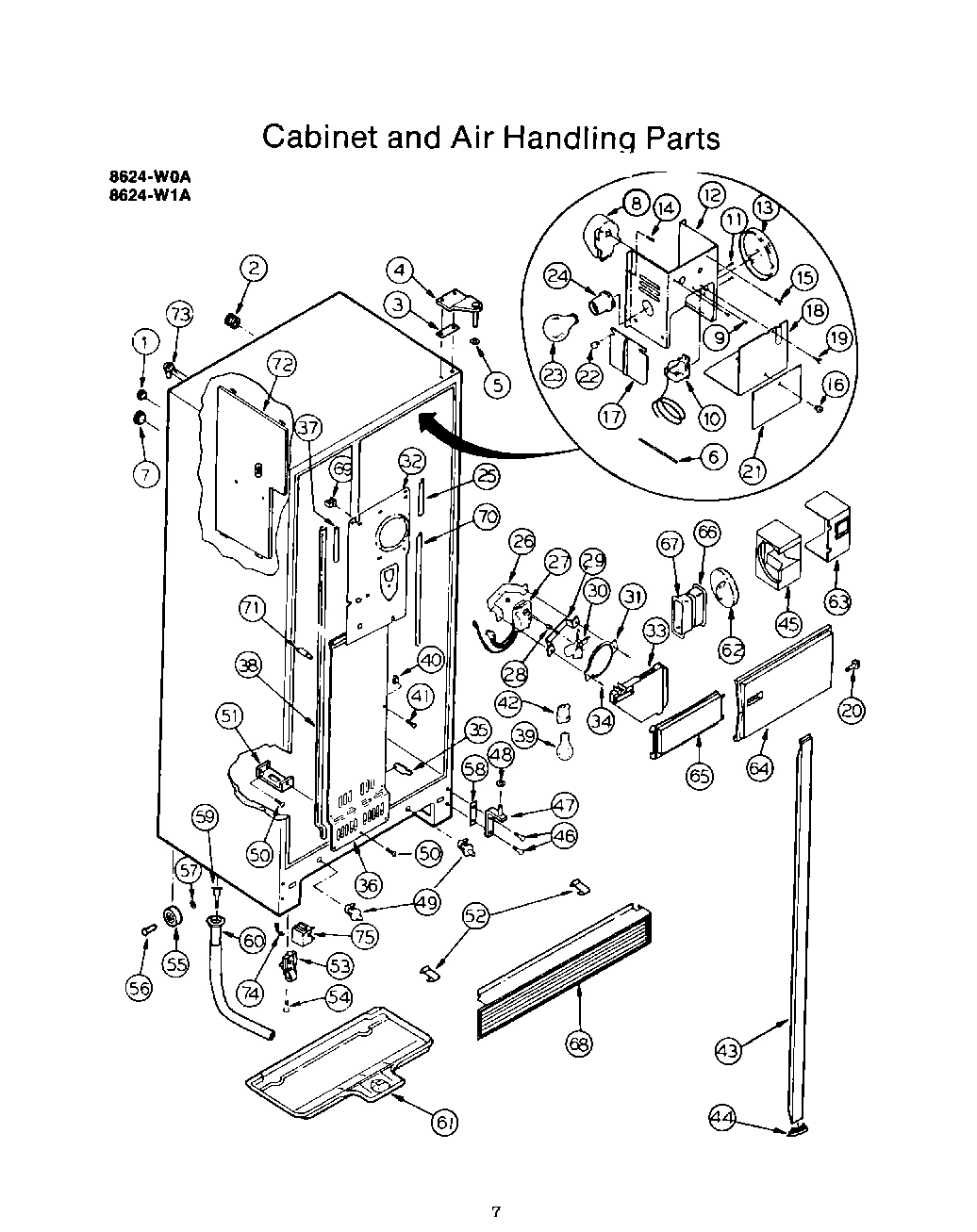

05 - CABINET AND AIR HANDLING

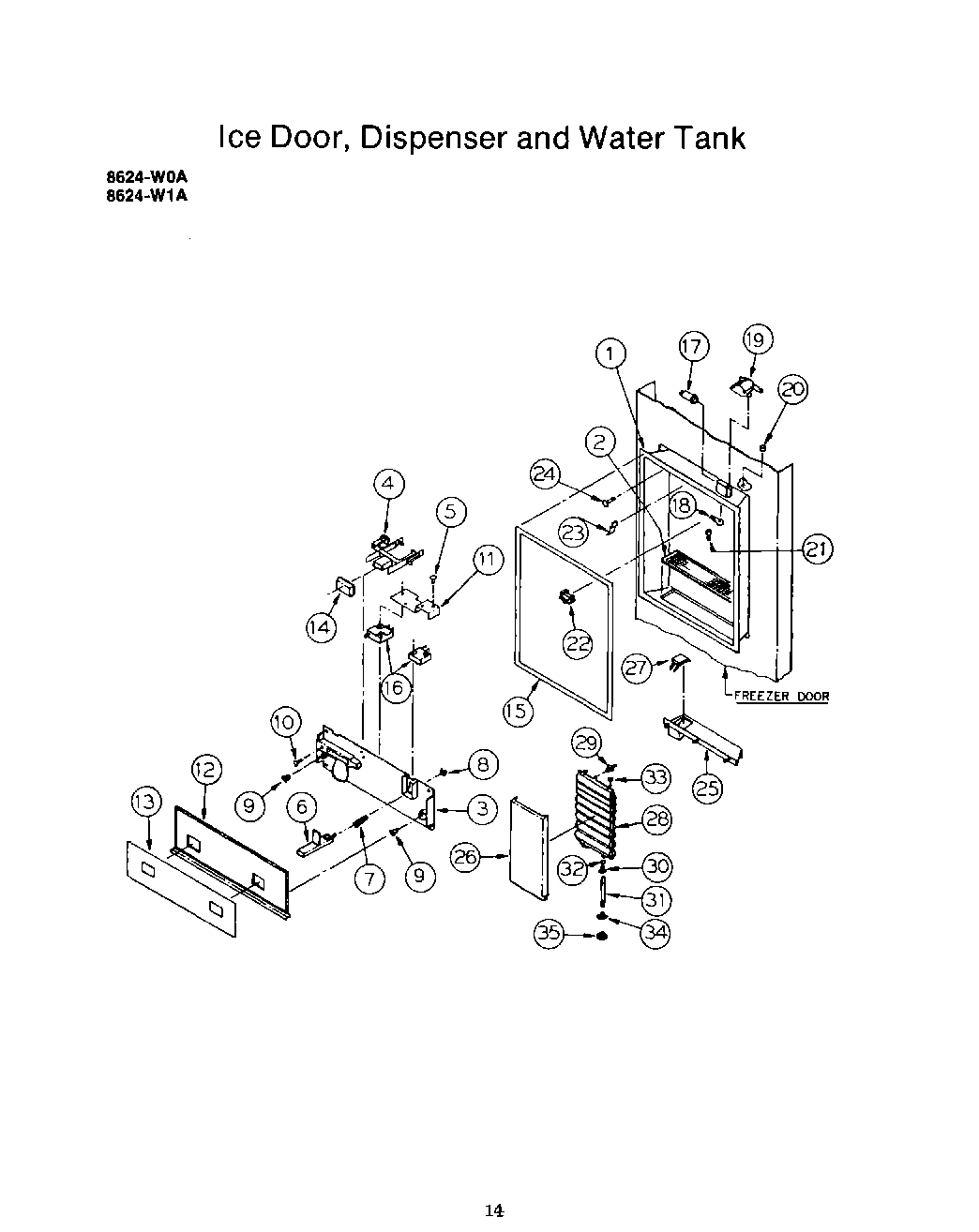

07 - ICE DOOR, DISPENSER AND WATER TANK
Common parts from model Whirlpool 8624^1A REFRIGERATOR
1
Gear - Crank WPL 790611 Contact Us For Availability
1
Evaporator Only WPL 790524 Contact Us For Availability
1
Bearing Hinge WPL 790001 Contact Us For Availability
1
Bearing-Hinge WPL 790372 Contact Us For Availability
1
Exterior Panel-Refrigerator-White WPL 790396 Contact Us For Availability
1
Exterior Panel-Refrigerator-Avocado WPL 790693 Contact Us For Availability
1
Exterior Panel-Refrigerator-Harvest WPL 790694 Contact Us For Availability
1
Exterior Panel-Refrigerator-Coffee WPL 790695 Contact Us For Availability
1
Exterior Panel-Refrigerator-Almond WPL 790696 Contact Us For Availability
1
Exterior Panel-Refrigerator-Toast (8624-x1A) WPL 790697 Contact Us For Availability
1
Exterior Panel-Refrigerator-Platinum (8624-x1 WPL 790698 Contact Us For Availability
1
Bushing-Hinge WPL 790371 Contact Us For Availability
1
Exterior Panel - Freezer-White WPL 790685 Contact Us For Availability
1
Exterior Panel - Freezer-Avocado WPL 790687 Contact Us For Availability
1
Exterior Panel - Freezer-Harvest WPL 790688 Contact Us For Availability
1
Exterior Panel - Freezer-Coffee WPL 790689 Contact Us For Availability
1
Exterior Panel - Freezer-Almond WPL 790690 Contact Us For Availability
1
Exterior Panel - Freezer-Toast (8624-x1A) WPL 790691 Contact Us For Availability
1
Exterior Panel - Freezer-Platinum (8624-x1A) WPL 790692 Contact Us For Availability
1
Label - Ice Container WPL 790587 Contact Us For Availability
1
Channel - Shelf Mounting (2) WPL 790420 Contact Us For Availability
1
Ferrule - Outer WPL 790038 Contact Us For Availability
1
Housing - Freezer Door Panel (8624-W0A) WPL 790545 Contact Us For Availability
1
Housing - Freezer Door Panel (8624-W1A) WPL 790586 Contact Us For Availability
2
Washer - Crank Gear Shaft WPL 790612 Contact Us For Availability
2
Block Coil (2) WPL 790525 Contact Us For Availability
2
Trim - Refrigerator Door WPL 790397 Contact Us For Availability
2
Screw - Handle WPL 790004 Contact Us For Availability
2
End-Handle Bottom WPL 790373 Contact Us For Availability
2
Front - Ice Container WPL 790588 Contact Us For Availability
2
Screw - No.8 (A) x 5/8 (8) WPL 790421 Contact Us For Availability
2
Tube - Rubber WPL 790076 Contact Us For Availability
2
Grid - Water Spill WPL 790546 Contact Us For Availability
3
Shaft - Crank Gear WPL 790613 Contact Us For Availability
3
Heater-Defrost WPL 790526 Contact Us For Availability
3
End - Handle Bottom WPL 790398 Contact Us For Availability
3
Grip-Handle WPL 790374 Contact Us For Availability
3
Door - Ice Container WPL 790589 Contact Us For Availability
3
Screw - Support (2) WPL 790261 Contact Us For Availability
3
Shim - Upper Hinge (2) WPL 790028 Contact Us For Availability
3
Plate - Mounting Switches WPL 790547 Contact Us For Availability
4
Gear - Sliding Spur WPL 790614 Contact Us For Availability
4
Capillary & Suction Line Assembly WPL 790527 Contact Us For Availability
4
Grip-Handle WPL 790399 Contact Us For Availability
4
End - Handle Top WPL 790375 Contact Us For Availability
4
Spring - Door WPL 790590 Contact Us For Availability
4
Bracket - Upper Hinge R.H. WPL 790445 Contact Us For Availability
4
Bracket - Upper Hinge L.H. WPL 790446 Contact Us For Availability
4
Actuator and Cup (4) WPL 790548 Contact Us For Availability
5
Housing - Mechanism WPL 790615 Contact Us For Availability
5
Thermostat-Defrost WPL 790528 Contact Us For Availability
5
End-Handle Top WPL 790400 Contact Us For Availability
5
Support - Rack R.H. (5) WPL 790376 Contact Us For Availability
5
Container - Ice WPL 790591 Contact Us For Availability
5
Clip - Shelf Trim WPL 790422 Contact Us For Availability
5
Washer - Upper Hinge WPL 790027 Contact Us For Availability
5
Screw - Switches WPL 790549 Contact Us For Availability
6
Retainer - Insulator WPL 790616 Contact Us For Availability
6
Support - Defrost Heater WPL 790529 Contact Us For Availability
6
Screw - Door Closer WPL 790402 Contact Us For Availability
6
Rack - Freezer Door (5) WPL 790377 Contact Us For Availability
6
Rivet - Racks (10) WPL 790378 Contact Us For Availability
6
Ram - Ice Dispenser WPL 790592 Contact Us For Availability
6
Pan - Storage Upper WPL 790423 Contact Us For Availability
6
Actuator - Water WPL 790550 Contact Us For Availability
7
Screw - Spring WPL 790617 Contact Us For Availability
7
Strap Evaporator WPL 790100 Contact Us For Availability
7
Frame-Nameplate WPL 790403 Contact Us For Availability
7
Tape - Label WPL 790404 Contact Us For Availability
7
Support - Rack L.H. (5) WPL 790379 Contact Us For Availability
7
Deflector - Ice Dispenser WPL 790593 Contact Us For Availability
7
Skirt - Ice Dispenser WPL 790594 Contact Us For Availability
7
Cover - Crisper Upper WPL 790424 Contact Us For Availability
7
Ferrule - Inner WPL 790037 Contact Us For Availability
7
Spring - Water Actuator WPL 790551 Contact Us For Availability
8
Retainer - Shut Off Wire (2) WPL 790618 Contact Us For Availability
8
Condenser WPL 790530 Contact Us For Availability
8
Door Compartment (2) WPL 790405 Contact Us For Availability
8
Gasket - Door WPL 790380 Contact Us For Availability
8
Disc - Ice Ram Drive WPL 790595 Contact Us For Availability
8
Pan Storage Lower WPL 790425 Contact Us For Availability
8
Timer - Defrost WPL 790449 Contact Us For Availability
8
Clip - Water Actuator WPL 790552 Contact Us For Availability
9
Tray - Ice WPL 790619 Contact Us For Availability
9
Bracket-Condenser Mounting (4) WPL 790314 Contact Us For Availability
9
Gasket-Refrigerator Door WPL 790406 Contact Us For Availability
9
Bumper - Light Switch WPL 790381 Contact Us For Availability
9
Gear - Ice Ram Drive WPL 790596 Contact Us For Availability
9
Cover - Crisper Lower WPL 790428 Contact Us For Availability
9
Screw - Timer To Bracket (2) WPL 790078 Contact Us For Availability
9
Anchor Stud - Plate (2) WPL 790553 Contact Us For Availability
10
Insulator - Thermostat WPL 790620 Contact Us For Availability
10
Interior Panel - Freezer Door WPL 790383 Contact Us For Availability
10
Bearing - Front & Rear (2) WPL 790597 Contact Us For Availability
10
Shelf- Bottom Freezer WPL 790429 Contact Us For Availability
10
Control - Cold WPL 790450 Contact Us For Availability
10
Screw - Actuator and Cup WPL 790554 Contact Us For Availability
11
Pivot - Tray WPL 790621 Contact Us For Availability
11
Drier WPL 790531 Contact Us For Availability
11
Trim - Freezer Door WPL 790384 Contact Us For Availability
11
Coupling - Ice Dispenser Container WPL 790598 Contact Us For Availability
11
Trim - Shelf (3) WPL 790430 Contact Us For Availability
11
Screw - Control To Bracket (2) WPL 790051 Contact Us For Availability
11
Shield - Actuator Switch WPL 790555 Contact Us For Availability
12
Spring - Tray Return WPL 790622 Contact Us For Availability
12
Cord - Service WPL 790110 Contact Us For Availability
12
Bumper - Light Switch WPL 790409 Contact Us For Availability
12
Shield - Wire WPL 790385 Contact Us For Availability
12
Spring - Motor Drive WPL 790599 Contact Us For Availability
12
Grommet - Freezer Shelf (6) WPL 790432 Contact Us For Availability
12
Bracket - Control Mounting WPL 790451 Contact Us For Availability
12
Panel - Decorative Front WPL 790556 Contact Us For Availability
13
Nut - Push In WPL 790623 Contact Us For Availability
13
Rack-Refrigerator Door Top WPL 790410 Contact Us For Availability
13
Support Top Rack - L.H. (2) WPL 790411 Contact Us For Availability
13
Support Top Rack - R.H. (2) WPL 790412 Contact Us For Availability
13
Spring - Housing Retainer WPL 790386 Contact Us For Availability
13
Nut - Push (8) WPL 790387 Contact Us For Availability
13
Gear - Ice Ram Drive WPL 790600 Contact Us For Availability
13
Trim - Basket WPL 790433 Contact Us For Availability
13
Knob - Cold Control WPL 790452 Contact Us For Availability
13
Label - Decorative Panel (8624-W0A) WPL 790557 Contact Us For Availability
13
Label - Decorative Panel (8624-W1A) WPL 790578 Contact Us For Availability
14
Spring - Tray Restrainer WPL 790624 Contact Us For Availability
14
Clamp-Service Cord WPL 790532 Contact Us For Availability
14
Tray - Eggs WPL 790413 Contact Us For Availability
14
Spring - Flipper Retainer WPL 790388 Contact Us For Availability
14
Pin - Ice Door WPL 790389 Contact Us For Availability
14
Cover - Housing WPL 790601 Contact Us For Availability
14
Shelf - Half - Upper WPL 790434 Contact Us For Availability
14
Label - Half Shelf WPL 790435 Contact Us For Availability
14
Screw - Bracket Mounting (8) WPL 790453 Contact Us For Availability
14
Button - Actuator WPL 790558 Contact Us For Availability
15
Extension - Frame WPL 790625 Contact Us For Availability
15
Screw - Control Grounding WPL 790082 Contact Us For Availability
15
Rack - Refrigerator Door Lower (3) WPL 790414 Contact Us For Availability
15
Support-R.H. (3) WPL 790415 Contact Us For Availability
15
Support-L.H. (3) WPL 790416 Contact Us For Availability
15
Rivet - Supports (12) WPL 790417 Contact Us For Availability
15
Screw - Supports (6) WPL 790418 Contact Us For Availability
15
Plug Button-Door Stop Mounting Hole WPL 790419 Contact Us For Availability
15
Flipper - Ice Door WPL 790390 Contact Us For Availability
15
Plug - Housing WPL 790391 Contact Us For Availability
15
Screw - Housing (5) WPL 790602 Contact Us For Availability
15
Basket - Sliding WPL 790436 Contact Us For Availability
15
Label - Housing WPL 790559 Contact Us For Availability
16
Ring - Retaining WPL 790626 Contact Us For Availability
16
Relay WPL 790533 Contact Us For Availability
16
Closer - Door WPL 790392 Contact Us For Availability
16
Screw - Door Closer (2) WPL 790393 Contact Us For Availability
16
Housing - Ice Ram Drive WPL 790603 Contact Us For Availability
16
Hanger - Basket R.H. WPL 790437 Contact Us For Availability
16
Switch - Solenoid (8624-W0A) WPL 790560 Contact Us For Availability
16
Switch - Solenoid (8624-W1A) WPL 790585 Contact Us For Availability
17
Bearing - Gauge Arm WPL 790627 Contact Us For Availability
17
Overload WPL 790534 Contact Us For Availability
17
Insulation - Door Housing WPL 790394 Contact Us For Availability
17
Button - Plug - Door Stop Mtg. Hole WPL 790395 Contact Us For Availability
17
Housing - Motor WPL 790604 Contact Us For Availability
17
Hanger - Basket L.H. WPL 790438 Contact Us For Availability
17
Bracket - Control Capillary Mtg. WPL 790455 Contact Us For Availability
17
Socket - Dispenser Light WPL 790561 Contact Us For Availability
18
Wire - Automatic Shut Off WPL 790628 Contact Us For Availability
18
Clip-Overload WPL 790535 Contact Us For Availability
18
Cover - Housing WPL 790605 Contact Us For Availability
18
Frame - Cantilever Shelf (4) WPL 790439 Contact Us For Availability
18
Cover - Control Bracket WPL 790456 Contact Us For Availability
18
Bulb - Light WPL 790562 Contact Us For Availability
19
Arm - Sensing WPL 790629 Contact Us For Availability
19
Cover-Terminal WPL 790536 Contact Us For Availability
19
Mount - Ice Dispenser Motor WPL 790606 Contact Us For Availability
19
Shelf - Glass (4) WPL 790440 Contact Us For Availability
19
Cover - Light WPL 790563 Contact Us For Availability
19
Reflector - Switch Mtg. Plate WPL 790581 Contact Us For Availability
20
Screw - Motor to Plate (2) WPL 790630 Contact Us For Availability
20
Strap - Bale WPL 790537 Contact Us For Availability
20
Motor - Ice Ram Drive WPL 790607 Contact Us For Availability
20
Screw Dispenser Drive Motor (2) WPL 790608 Contact Us For Availability
20
Trim - Rear Shelf (4) WPL 790441 Contact Us For Availability
20
Support - Refrigerator Light Shield (4) WPL 790457 Contact Us For Availability
20
Grommet - Water Tube WPL 790564 Contact Us For Availability
21
Saddle Valve WPL 790258 Contact Us For Availability
21
Compressor WPL 790538 Contact Us For Availability
21
Bracket - Motor WPL 790609 Contact Us For Availability
21
Trim - Front Shelf (4) WPL 790442 Contact Us For Availability
21
Cover - Capillary Tube WPL 790458 Contact Us For Availability
21
Clamp - Water Tube WPL 790565 Contact Us For Availability
22
Union - 1/4`` WPL 790631 Contact Us For Availability
22
Screw - 1/4 - 20 (3) WPL 790539 Contact Us For Availability
22
Coupling - Ice Dispenser Motor WPL 790610 Contact Us For Availability
22
Support - Ice Maker (2) WPL 790443 Contact Us For Availability
22
Screw - Support (2) WPL 790444 Contact Us For Availability
22
Stud Plastic WPL 790454 Contact Us For Availability
22
Switch - Slide (8624-W0A) WPL 790566 Contact Us For Availability
23
Connector - Copper Tube WPL 790632 Contact Us For Availability
23
Nut - Compression WPL 790247 Contact Us For Availability
23
Sleeve-Compressor (3) WPL 790540 Contact Us For Availability
23
Bulb - Light - Refrigerator WPL 790459 Contact Us For Availability
24
Tube - Water Inlet Fill Valve To Icemaker, Fi WPL 790633 Contact Us For Availability
24
Grommet-Compressor (3) WPL 790541 Contact Us For Availability
24
Socket - Light - Refrigerator WPL 790460 Contact Us For Availability
24
Screw - Housing (7) WPL 790567 Contact Us For Availability
25
Condenser - Condensate WPL 790542 Contact Us For Availability
25
Screw - No.8 x 1/2 (13) WPL 790058 Contact Us For Availability
25
Gasket - Coil Cover (2) WPL 790461 Contact Us For Availability
25
Cover - Door Panel Trim WPL 790568 Contact Us For Availability
26
Sleeve - Water Tubing WPL 790634 Contact Us For Availability
26
Screw - Bracket (2) WPL 790008 Contact Us For Availability
26
Cover - Water Tank WPL 790569 Contact Us For Availability
27
Water Valve - Dual Solenoid WPL 790635 Contact Us For Availability
27
Motor - Blower WPL 790061 Contact Us For Availability
27
Door - Ice WPL 790570 Contact Us For Availability
28
Spring - Sensing Arm WPL 790636 Contact Us For Availability
28
Bracket - Defrost Plate (4) WPL 790544 Contact Us For Availability
28
Bushing - Motor Mounting (2) WPL 790084 Contact Us For Availability
28
Tank - Water Cooler (8624-W0A) WPL 790571 Contact Us For Availability
28
Tank - Water Cooler (8624-W1A) WPL 790582 Contact Us For Availability
28
Connector - Tube (8624-W1A) (2) WPL 790583 Contact Us For Availability
28
Grommet - Tank (8624-W1A (2) WPL 790584 Contact Us For Availability
29
Cam - Ice Level WPL 790637 Contact Us For Availability
29
Bracket - Front Motor Mounting WPL 790060 Contact Us For Availability
29
Support - Water Tank (3) WPL 790572 Contact Us For Availability
30
Circuit Board WPL 790638 Contact Us For Availability
30
Blade - Fan WPL 790462 Contact Us For Availability
30
Sleeve - Tube Insert WPL 790573 Contact Us For Availability
31
Screw - Board To Plate (3) WPL 790639 Contact Us For Availability
31
Ring - Fan Orifice WPL 790062 Contact Us For Availability
31
Washer - Nylon (7) WPL 790477 Contact Us For Availability
31
Tube - Water Inlet WPL 790574 Contact Us For Availability
32
Clip - Ice Level Cam WPL 790640 Contact Us For Availability
32
Nut - Anchor (2) WPL 790063 Contact Us For Availability
32
Cover - Upper Coil WPL 790463 Contact Us For Availability
32
Ring - Seal (3) WPL 790575 Contact Us For Availability
33
Label Ice Maker WPL 790641 Contact Us For Availability
33
Cover - Fan WPL 790464 Contact Us For Availability
33
Cap - Seal WPL 790576 Contact Us For Availability
34
Front Ice Maker WPL 790642 Contact Us For Availability
34
Screw - No.8 x 3/4 WPL 790476 Contact Us For Availability
34
Nut - Tube Mounting WPL 790577 Contact Us For Availability
34
Harness - Door Housing (8624-W0A) WPL 790579 Contact Us For Availability
34
Heater - Door Housing WPL 790580 Contact Us For Availability
35
Follower Cam (5) WPL 790643 Contact Us For Availability
35
Damper - Meat Keeper WPL 790465 Contact Us For Availability
36
Nut - Mounting Plate WPL 790644 Contact Us For Availability
36
Cover - Lower Coil WPL 790466 Contact Us For Availability
37
Screw - Plate To Housing (5) WPL 790645 Contact Us For Availability
37
Gasket - Coil Cover L.H. WPL 790467 Contact Us For Availability
38
Washer Flat (2) WPL 790646 Contact Us For Availability
38
Gasket - R & L Cover (2) WPL 790468 Contact Us For Availability
39
Screw - Housing To Frame (4) WPL 790647 Contact Us For Availability
39
Bulb - L WPL 790469 Contact Us For Availability
40
Motor WPL 790648 Contact Us For Availability
40
WPL 790470 WPL 790470 Contact Us For Availability
41
Plate - Mounting WPL 790649 Contact Us For Availability
41
WPL 790339 WPL 790339 Contact Us For Availability
42
Rack - Gear WPL 790650 Contact Us For Availability
42
WPL 790471 WPL 790471 Contact Us For Availability
43
Frame - Icemaker WPL 790651 Contact Us For Availability
43
WPL 790472 WPL 790472 Contact Us For Availability
43
WPL 790473 WPL 790473 Contact Us For Availability
43
WPL 790474 WPL 790474 Contact Us For Availability
43
WPL 790664 WPL 790664 Contact Us For Availability
43
WPL 790665 WPL 790665 Contact Us For Availability
43
WPL 790666 WPL 790666 Contact Us For Availability
43
WPL 790667 WPL 790667 Contact Us For Availability
43
WPL 790668 WPL 790668 Contact Us For Availability
43
WPL 790669 WPL 790669 Contact Us For Availability
44
WPL 790475 WPL 790475 Contact Us For Availability
44
WPL 790670 WPL 790670 Contact Us For Availability
44
WPL 790671 WPL 790671 Contact Us For Availability
44
WPL 790672 WPL 790672 Contact Us For Availability
44
WPL 790673 WPL 790673 Contact Us For Availability
44
WPL 790674 WPL 790674 Contact Us For Availability
44
WPL 790675 WPL 790675 Contact Us For Availability
45
WPL 790478 WPL 790478 Contact Us For Availability
46
WPL 790479 WPL 790479 Contact Us For Availability
47
WPL 790480 WPL 790480 Contact Us For Availability
47
WPL 790481 WPL 790481 Contact Us For Availability
47
WPL 790482 WPL 790482 Contact Us For Availability
47
WPL 790483 WPL 790483 Contact Us For Availability
47
WPL 790484 WPL 790484 Contact Us For Availability
48
WPL 790485 WPL 790485 Contact Us For Availability
49
WPL 790486 WPL 790486 Contact Us For Availability
50
WPL 790487 WPL 790487 Contact Us For Availability
51
WPL 790488 WPL 790488 Contact Us For Availability
52
WPL 790489 WPL 790489 Contact Us For Availability
53
WPL 790490 WPL 790490 Contact Us For Availability
54
WPL 790491 WPL 790491 Contact Us For Availability
55
WPL 790492 WPL 790492 Contact Us For Availability
56
WPL 790493 WPL 790493 Contact Us For Availability
57
WPL 790047 WPL 790047 Contact Us For Availability
58
WPL 790494 WPL 790494 Contact Us For Availability
59
WPL 790495 WPL 790495 Contact Us For Availability
60
WPL 790496 WPL 790496 Contact Us For Availability
61
WPL 790497 WPL 790497 Contact Us For Availability
62
WPL 790498 WPL 790498 Contact Us For Availability
63
WPL 790053 WPL 790053 Contact Us For Availability
63
WPL 790499 WPL 790499 Contact Us For Availability
64
WPL 790500 WPL 790500 Contact Us For Availability
65
WPL 790501 WPL 790501 Contact Us For Availability
66
WPL 790502 WPL 790502 Contact Us For Availability
67
WPL 790503 WPL 790503 Contact Us For Availability
68
WPL 790504 WPL 790504 Contact Us For Availability
69
WPL 790021 WPL 790021 Contact Us For Availability
70
WPL 790505 WPL 790505 Contact Us For Availability
71
WPL 790506 WPL 790506 Contact Us For Availability
72
WPL 790507 WPL 790507 Contact Us For Availability
72
WPL 790508 WPL 790508 Contact Us For Availability
72
WPL 790513 WPL 790513 Contact Us For Availability
72
WPL 790522 WPL 790522 Contact Us For Availability
72
WPL 790523 WPL 790523 Contact Us For Availability
73
WPL 790244 WPL 790244 Contact Us For Availability
73
WPL 790509 WPL 790509 Contact Us For Availability
73
WPL 790510 WPL 790510 Contact Us For Availability
74
WPL 790511 WPL 790511 Contact Us For Availability
75
WPL 790249 WPL 790249 Contact Us For Availability
75
WPL 790382 WPL 790382 Contact Us For Availability
75
WPL 790018 WPL 790018 Contact Us For Availability
75
WPL 790094 WPL 790094 Contact Us For Availability
75
WPL 790172 WPL 790172 Contact Us For Availability
75
WPL 790173 WPL 790173 Contact Us For Availability
75
WPL 790174 WPL 790174 Contact Us For Availability
75
WPL 790175 WPL 790175 Contact Us For Availability
75
WPL 790184 WPL 790184 Contact Us For Availability
75
WPL 790185 WPL 790185 Contact Us For Availability
75
WPL 790186 WPL 790186 Contact Us For Availability
75
WPL 790187 WPL 790187 Contact Us For Availability
75
WPL 790212 WPL 790212 Contact Us For Availability
75
WPL 790213 WPL 790213 Contact Us For Availability
75
WPL 790222 WPL 790222 Contact Us For Availability
75
WPL 790223 WPL 790223 Contact Us For Availability
75
WPL 790512 WPL 790512 Contact Us For Availability
75
WPL 790514 WPL 790514 Contact Us For Availability
75
WPL 790515 WPL 790515 Contact Us For Availability
75
WPL 790516 WPL 790516 Contact Us For Availability
75
WPL 790517 WPL 790517 Contact Us For Availability
75
WPL 790518 WPL 790518 Contact Us For Availability
75
WPL 790519 WPL 790519 Contact Us For Availability
75
WPL 790520 WPL 790520 Contact Us For Availability
75
WPL 790521 WPL 790521 Contact Us For Availability
× ![]()
